Editor

URLATE includes a built-in editor that lets you create and modify patterns.
This guide will walk you through how to use it.
It may seem a bit complicated at first, but if you follow the instructions step by step, you'll get the hang of it.
If you have any questions, feel free to open an issue.

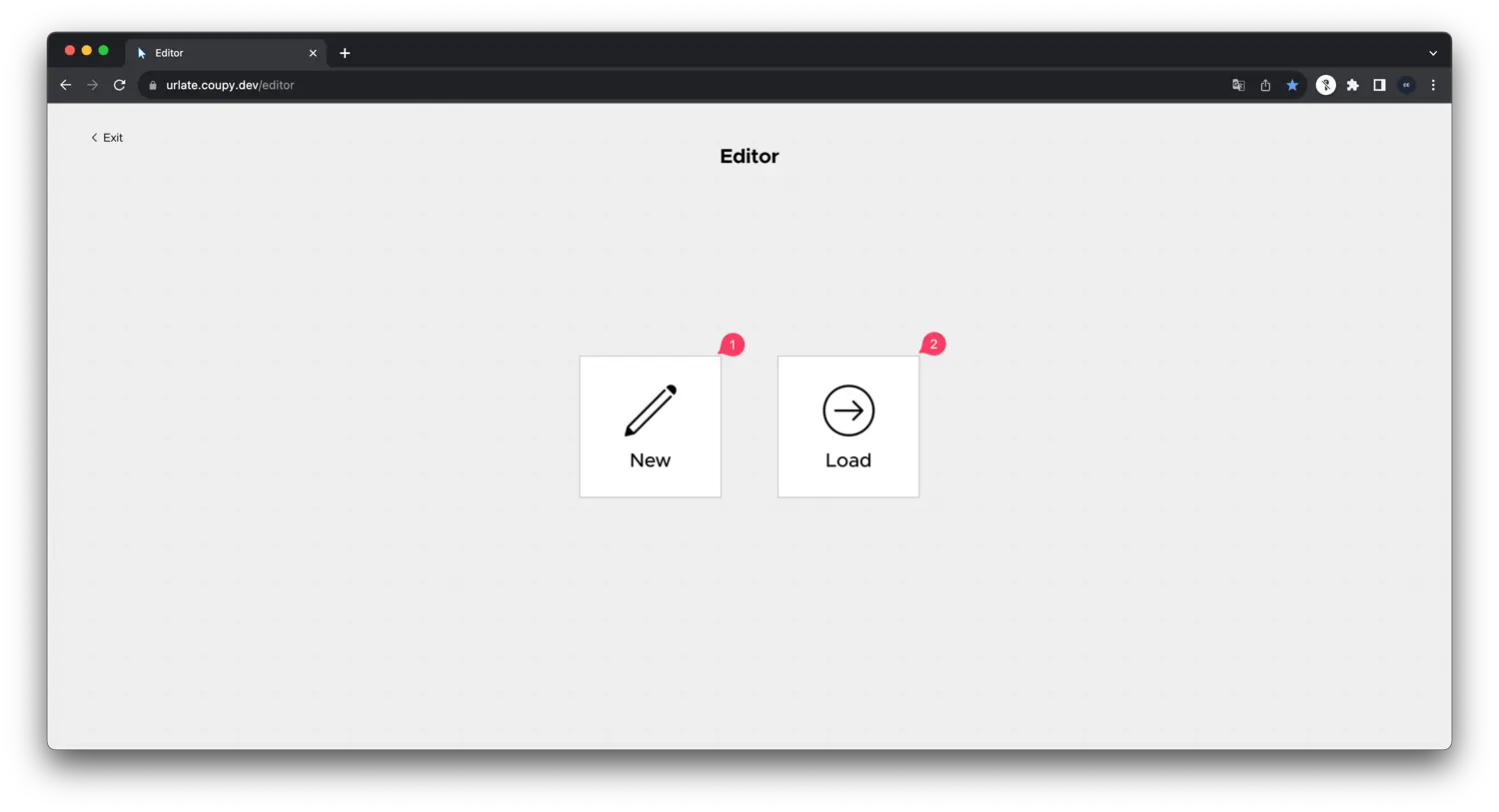

Home Screen

When you first open the editor, you'll see the home screen.

1. New: Create a new pattern.
2. Load: Open an existing pattern file (.json).

Creating a New Pattern

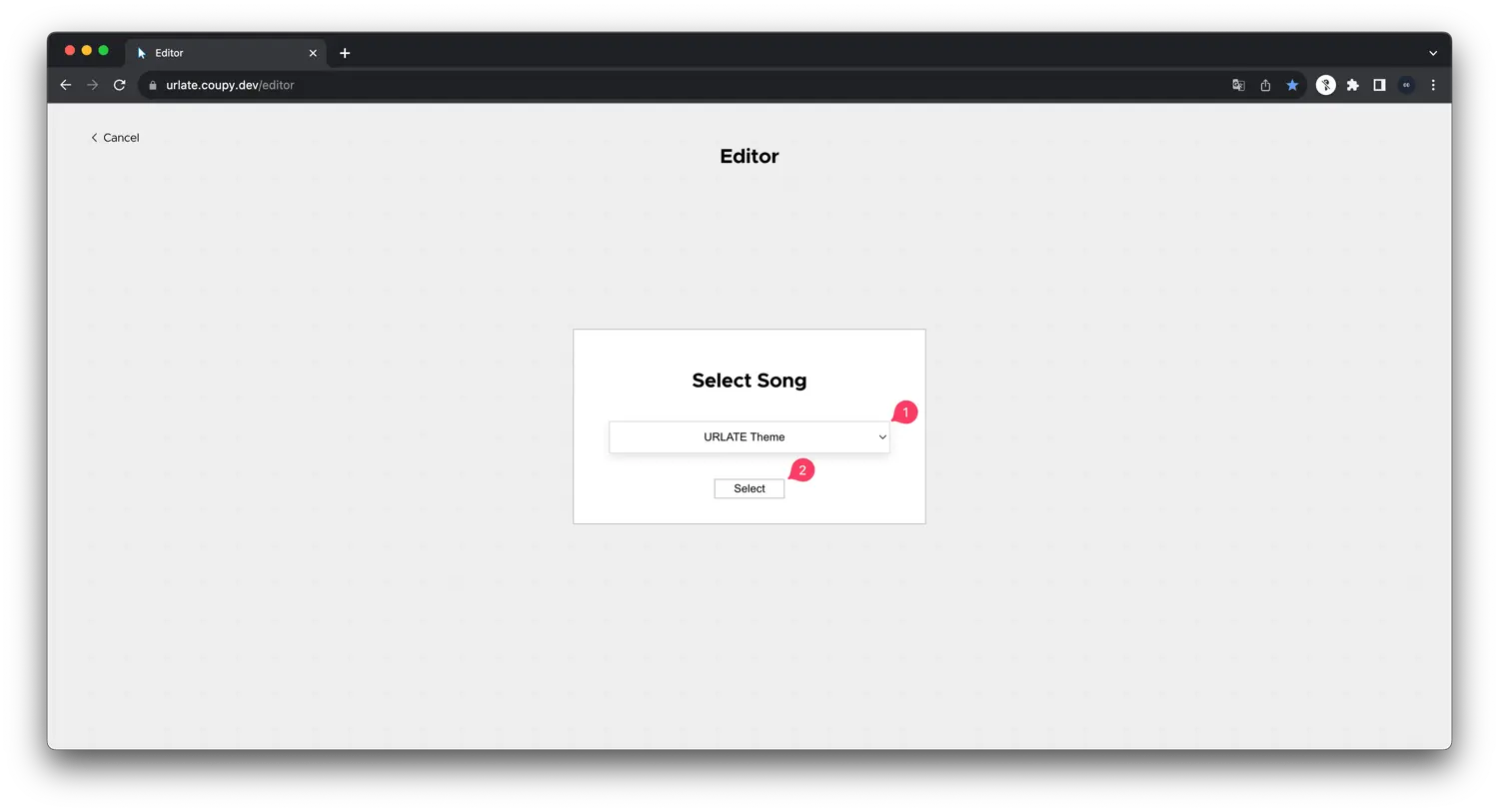

Click the New button to open the song selection screen. Choose the song you want to use for your pattern.

1. Select a song from the list.
2. Click the Select button.

Loading an Existing Pattern

Click the Load button to open the file selection dialog.

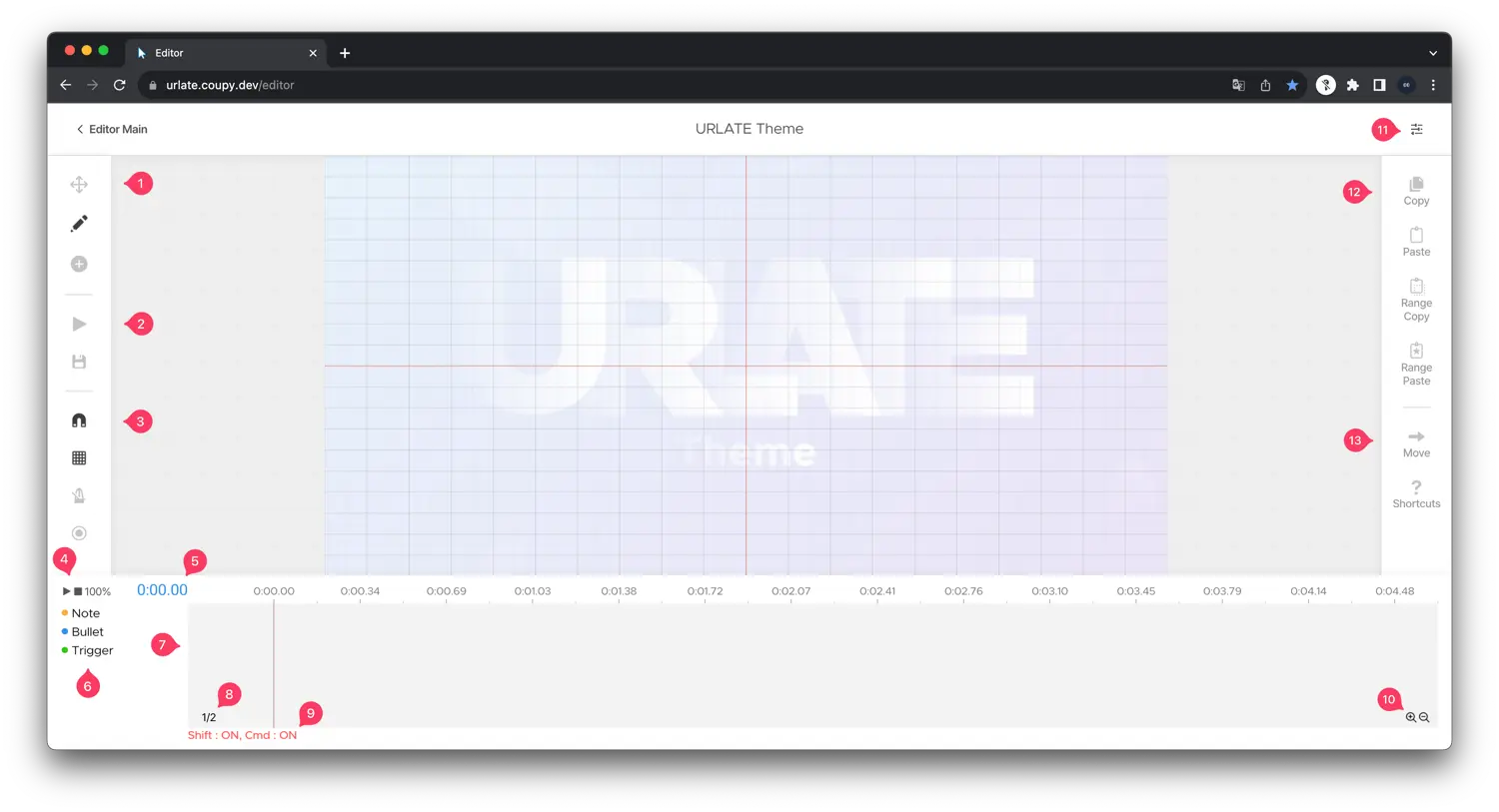

Editor Screen

This is the main editor screen where you can create or modify patterns.
It includes two toolbars, a timeline, a settings panel, and a preview area.

1. Essential Tools

   • Move: Click and drag to move an object. You can also adjust its timing in the timeline.
   • Edit: Click to edit the selected object. The settings panel will update accordingly.
   • Add: Click to add a new object. The new object will be automatically selected.

2. Test / Save

   • Test: Redirects to the test page. The current pattern is saved in local storage, but it's recommended to export it as a file.
   • Save: Exports the pattern as a .json file.

3. Editor Tools

4. Playback Controls

   • Play: Starts preview playback.
   • Stop: Stops playback.
   • Rate: Adjusts playback speed (default: 100%).

5. Time Indicator: Displays the current preview time. Click to copy it to clipboard.

6. Elements Viewer: Shows stacked objects if multiple exist at the same time.

7. Timeline: Displays added objects. Drag to change their timing.

8. Beat Selector: Click to choose how beats are divided.

9. Key Indicator: Displays currently pressed keys (Shift, Ctrl, ⌘).

10. Zoom: Zooms in or out of the timeline.

11. Settings Panel: Toggles the settings panel.

12. Element Tools

13. Move (Time): Move the timeline by specifying a time value.

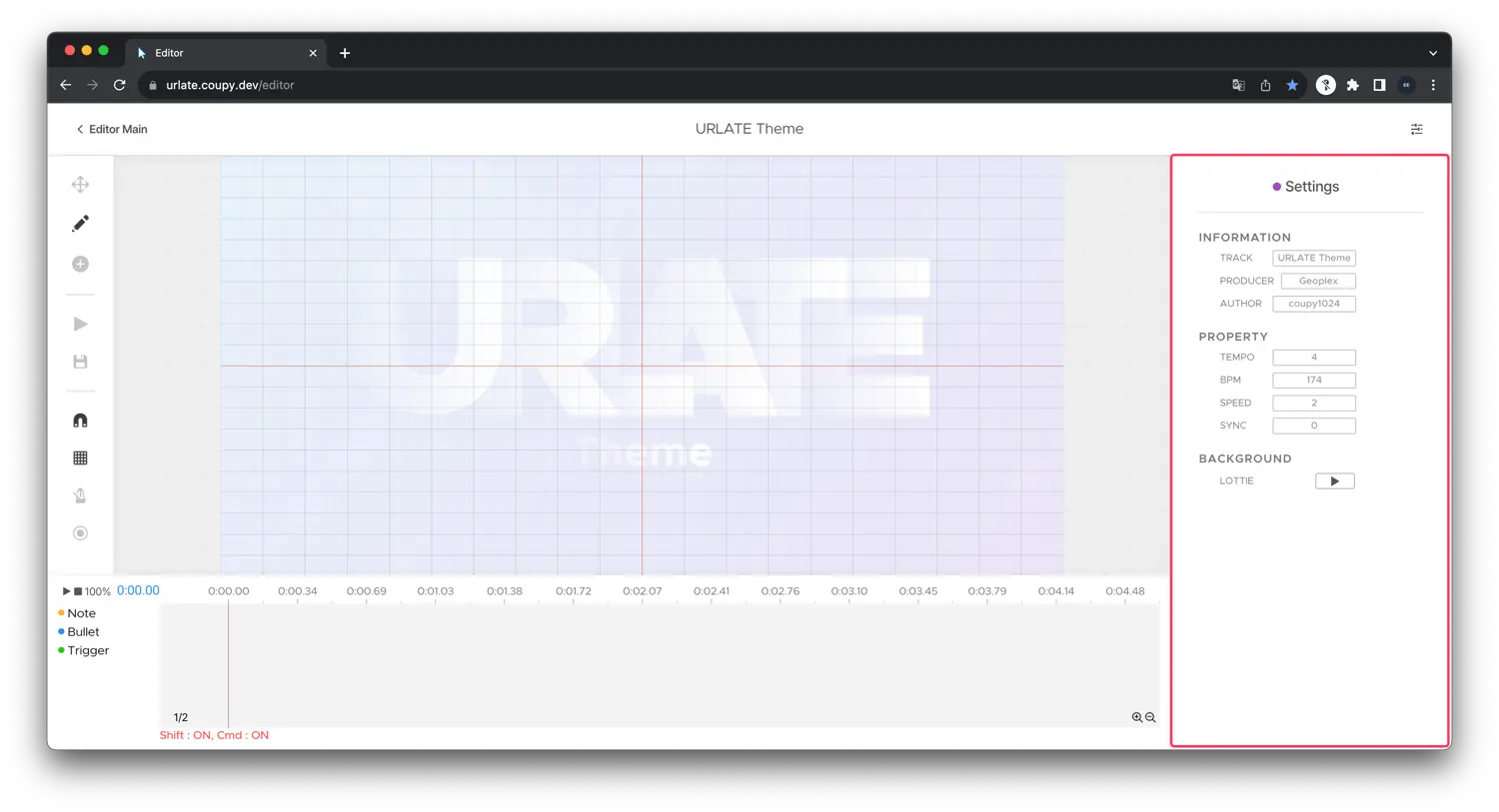

Pattern Settings

Click the Settings button with no object selected to open global pattern settings.

• INFORMATION: Basic pattern metadata. If it's a collaborative work, update the AUTHOR field.

• PROPERTY

  • BPM: Sets the initial beats per minute.
  • SPEED: Controls how fast objects move (range: 1–5).
  • SYNC: Adjusts offset in milliseconds for audio syncing.

Note Settings

Add notes using the Add tool and clicking the preview. Selecting a note updates the settings panel.

Click Note

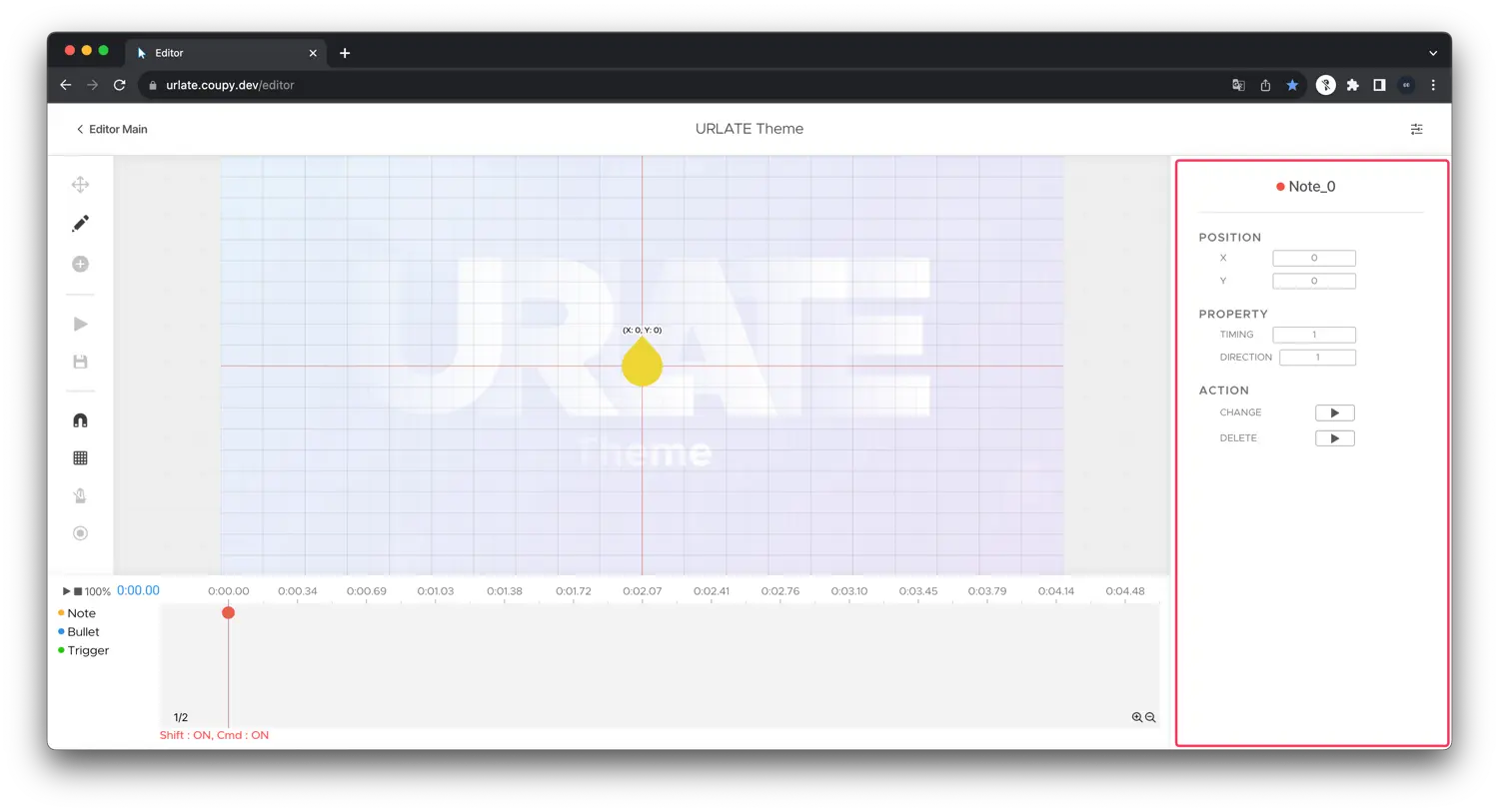

Wheel Note

Hold Note

All notes share these settings:

• POSITION

  • X / Y: Note position (range: -100 to 100).

• PROPERTY

  • TIMING: Beat count from the start of the song.
  • DIRECTION (Wheel note): Either -1 or 1.
  • TIME (Hold note): Beat duration from note start.

• ACTION

  • CHANGE: Change note type.
  • DELETE: Remove the note.

Bullet Settings

Add bullets using the Add tool by clicking the side of the preview. Select or add a bullet to see its settings.

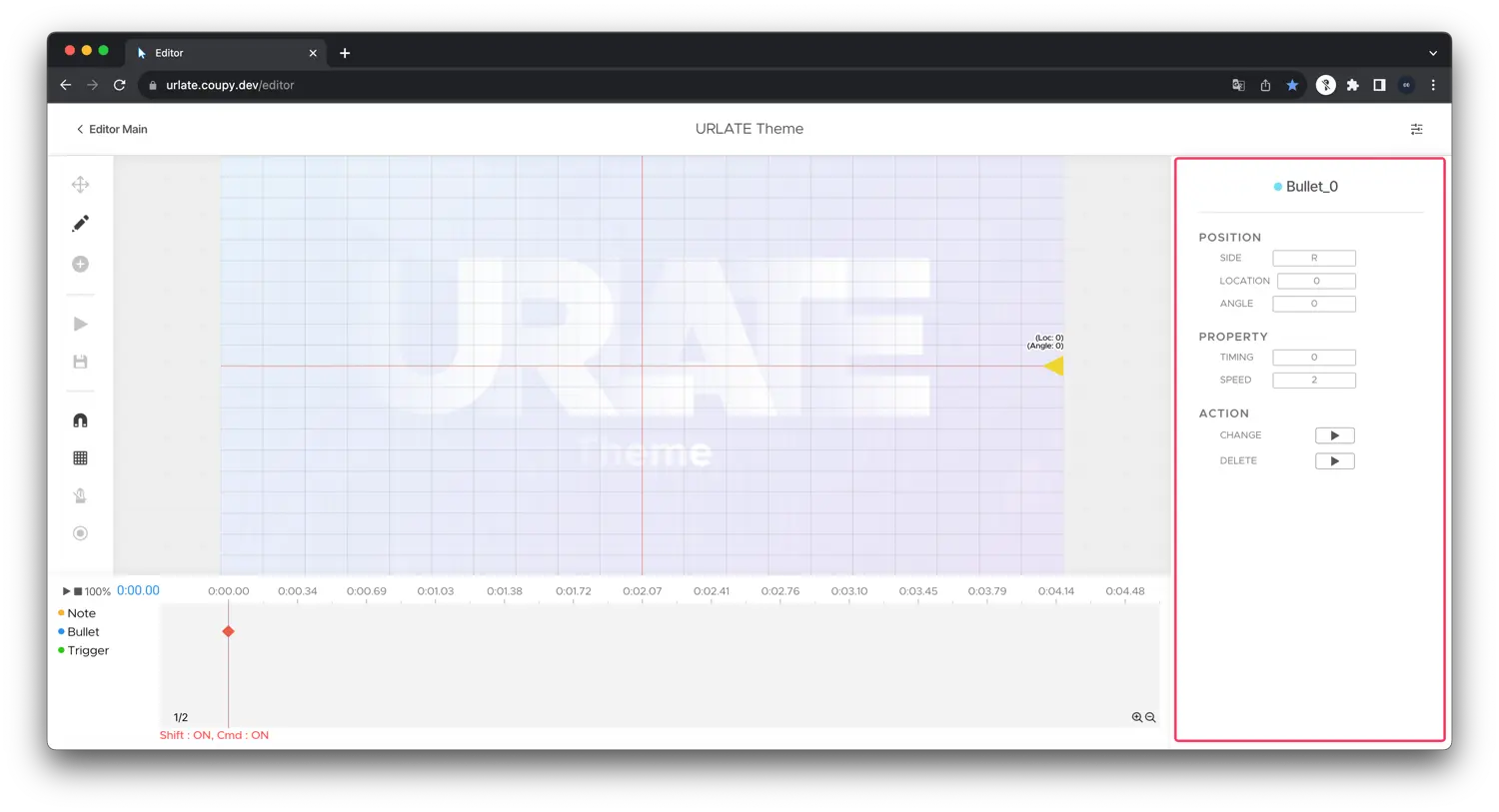

Pointed Bullet

• POSITION

  • SIDE: Which side the bullet appears from.
  • LOCATION: Position along that side (0–100).

• PROPERTY

  • TIMING: Beat count from the start of the song.
  • SPEED: Bullet speed.

• ACTION

  • CHANGE: Change bullet type.
  • DELETE: Delete the bullet.

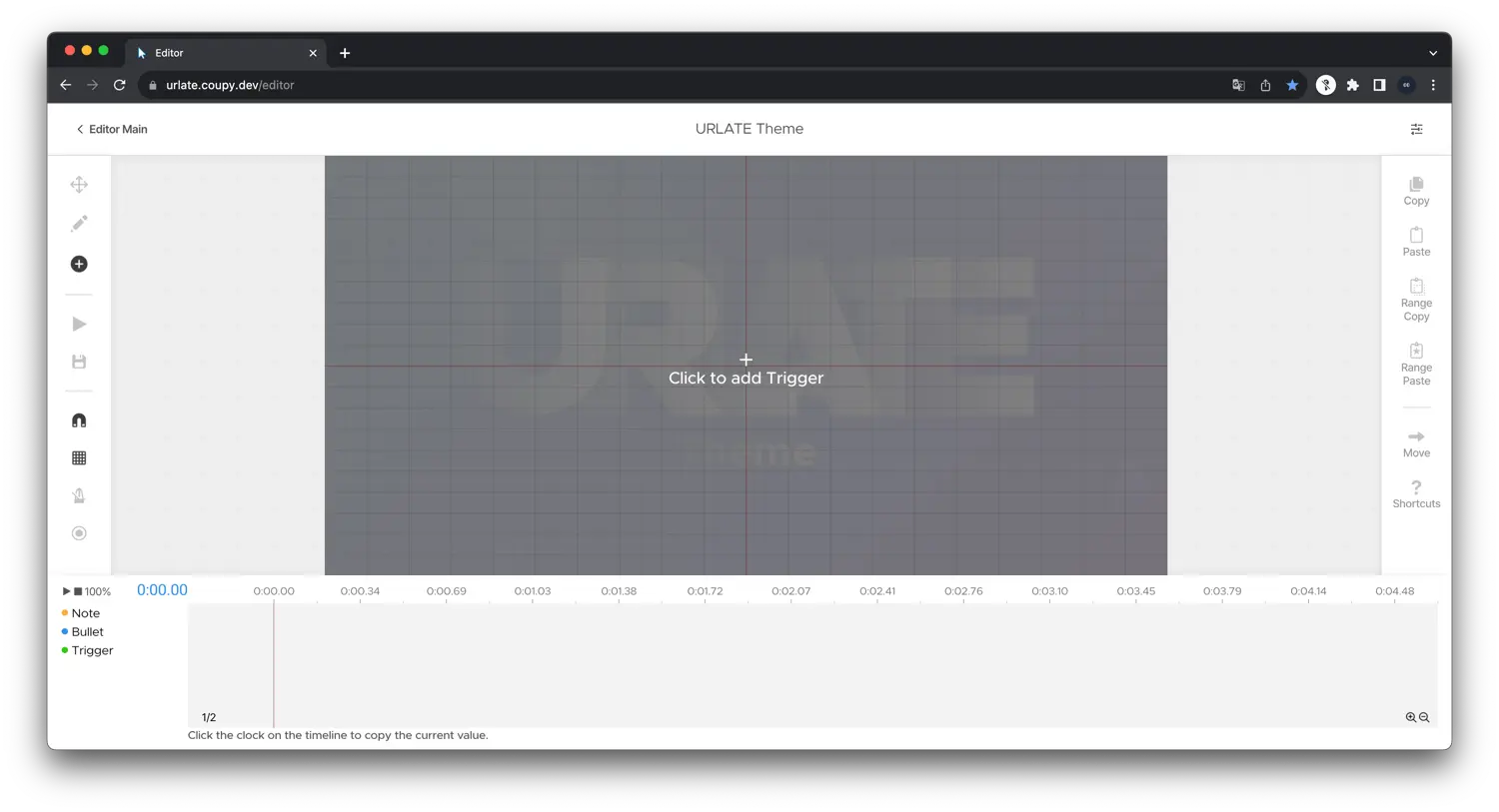

Trigger Settings

Add triggers by clicking the outer area of the preview using the Add tool. Each trigger type can be selected after creation.

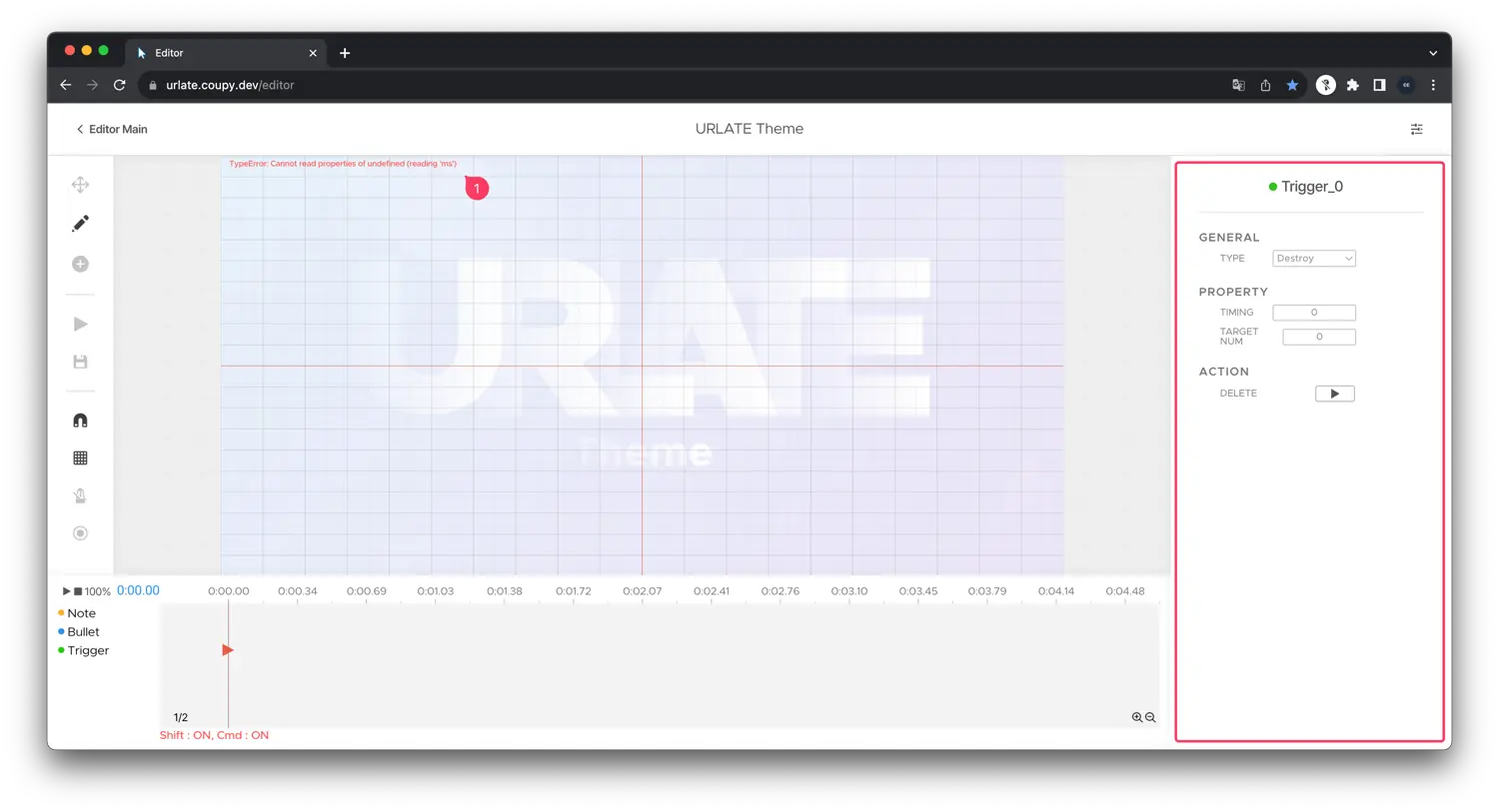

Destroy Trigger

Destroys a specific bullet.
You should set the TARGET NUM value to determine which bullet will be destroyed.

1. This error message occurs because there is currently no bullet_0 pointed to by destroy trigger.

Destroy All Trigger

Destroys all bullets.

BPM Trigger

Immediately changes the BPM.

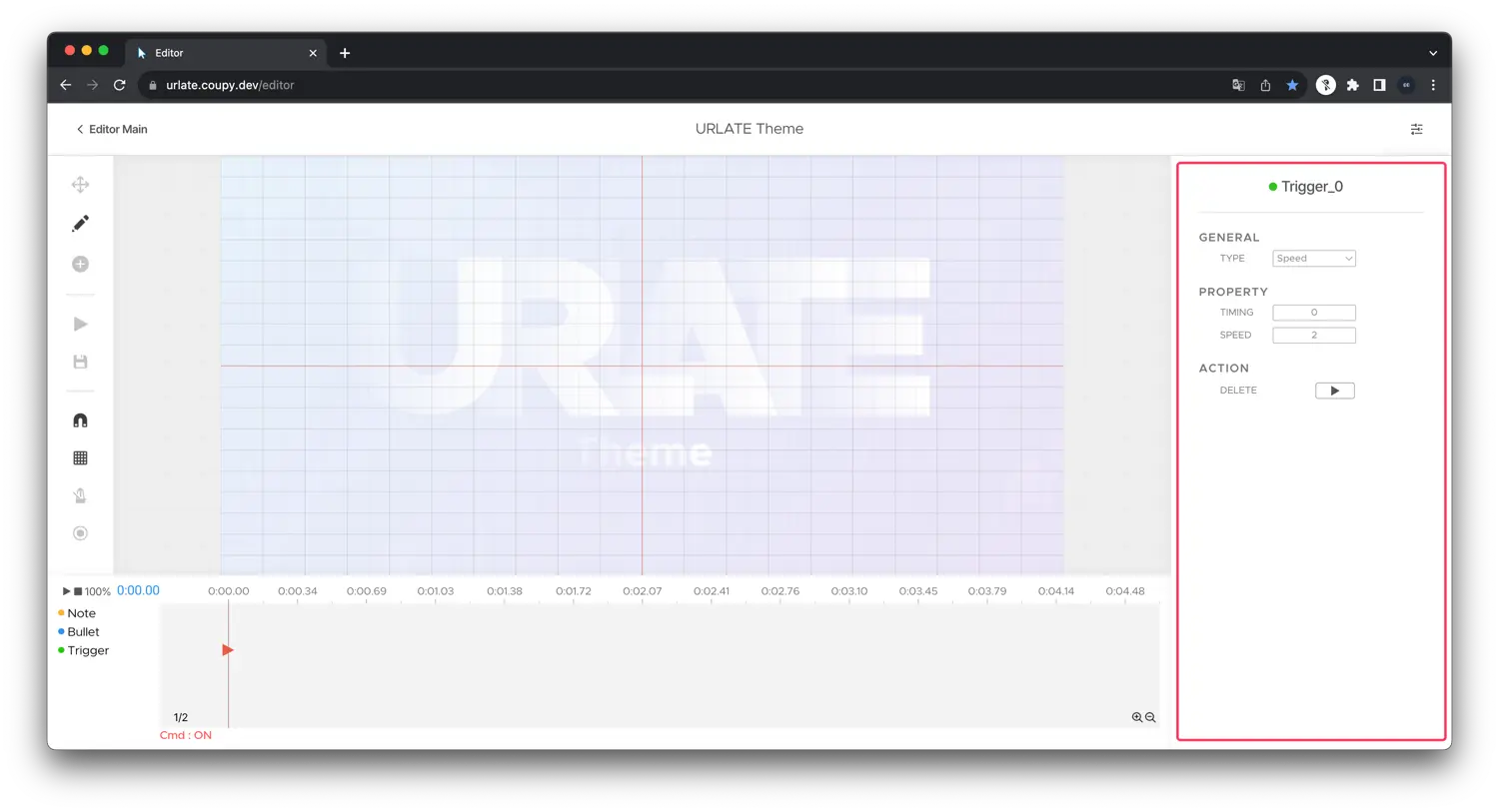

Speed Trigger

Immediately changes the speed.

Opacity Trigger

Sets canvas opacity (range: 0 to 1).

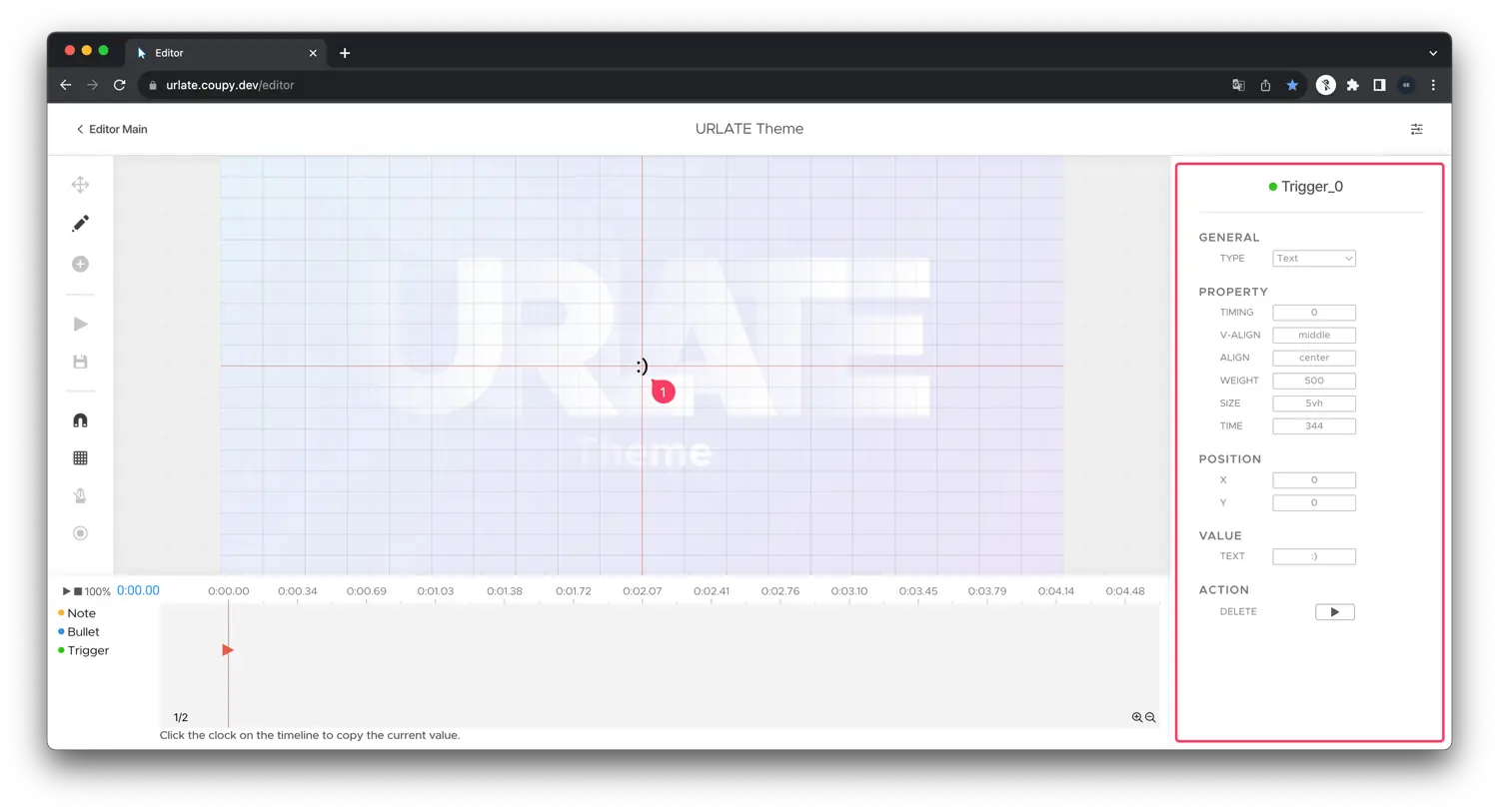

Text Trigger

Displays text on the canvas.

1. This text is generated by the text trigger.

• PROPERTY

  • TIMING: Beat count from the start of the song.
  • V-ALIGN / ALIGN: Text alignment (see MDN docs).
  • WEIGHT / SIZE: Font weight (10–900) and size (CSS unit, vh recommended).
  • TIME: Duration to display, in beats.

• POSITION (X / Y): Text position (-100 to 100).

• VALUE (TEXT): The actual text to display.

Editor Tools

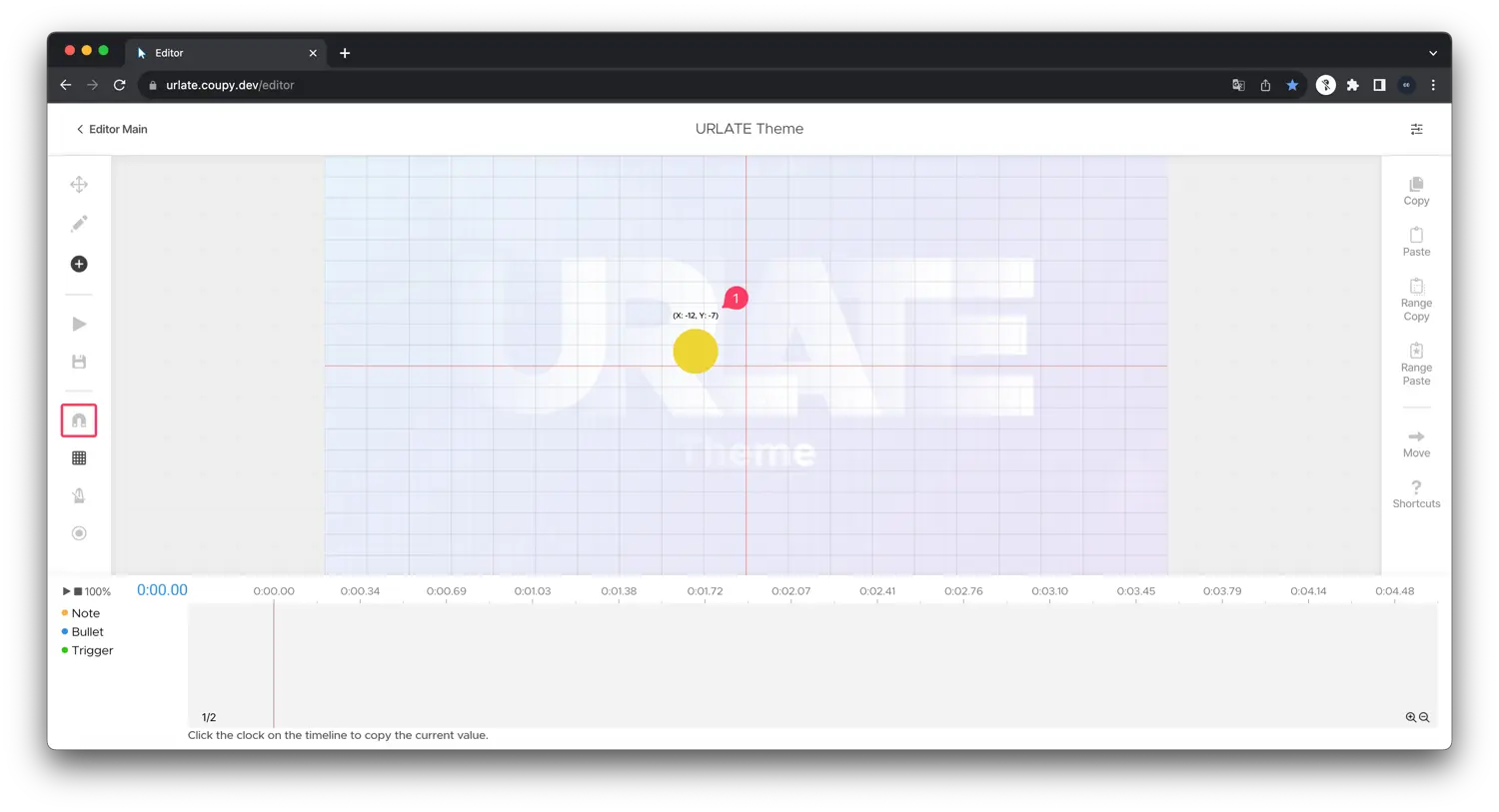

Magnet

Snaps notes to the grid.

1. As you can see, the notes are ignored the grid when the magnet is disabled.

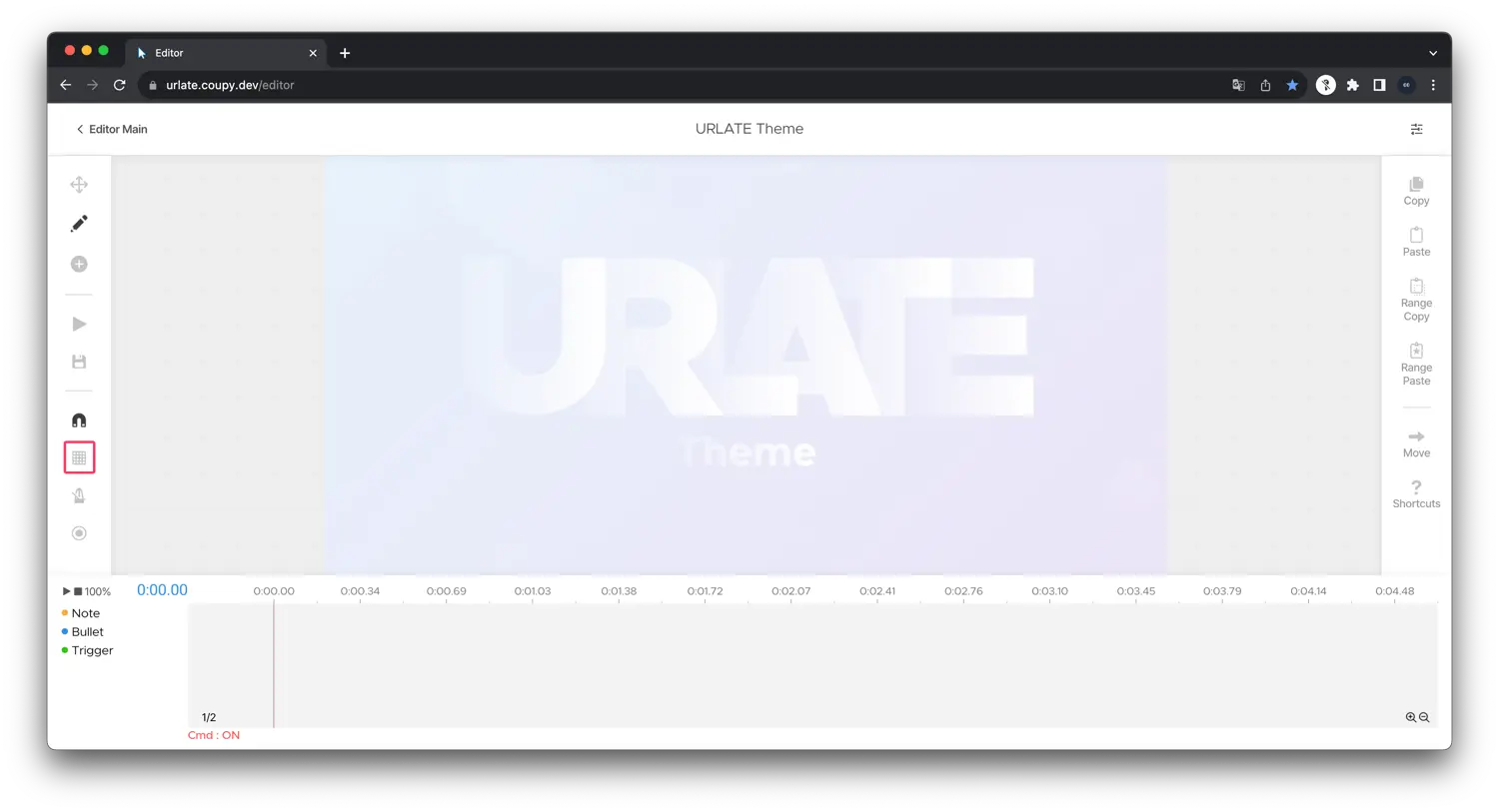

Grid

Toggles grid visibility.
Even if the grid is invisible, the notes will be snapped to the grid if the magnet is enabled.

Metronome

Plays metronome sound during preview playback.

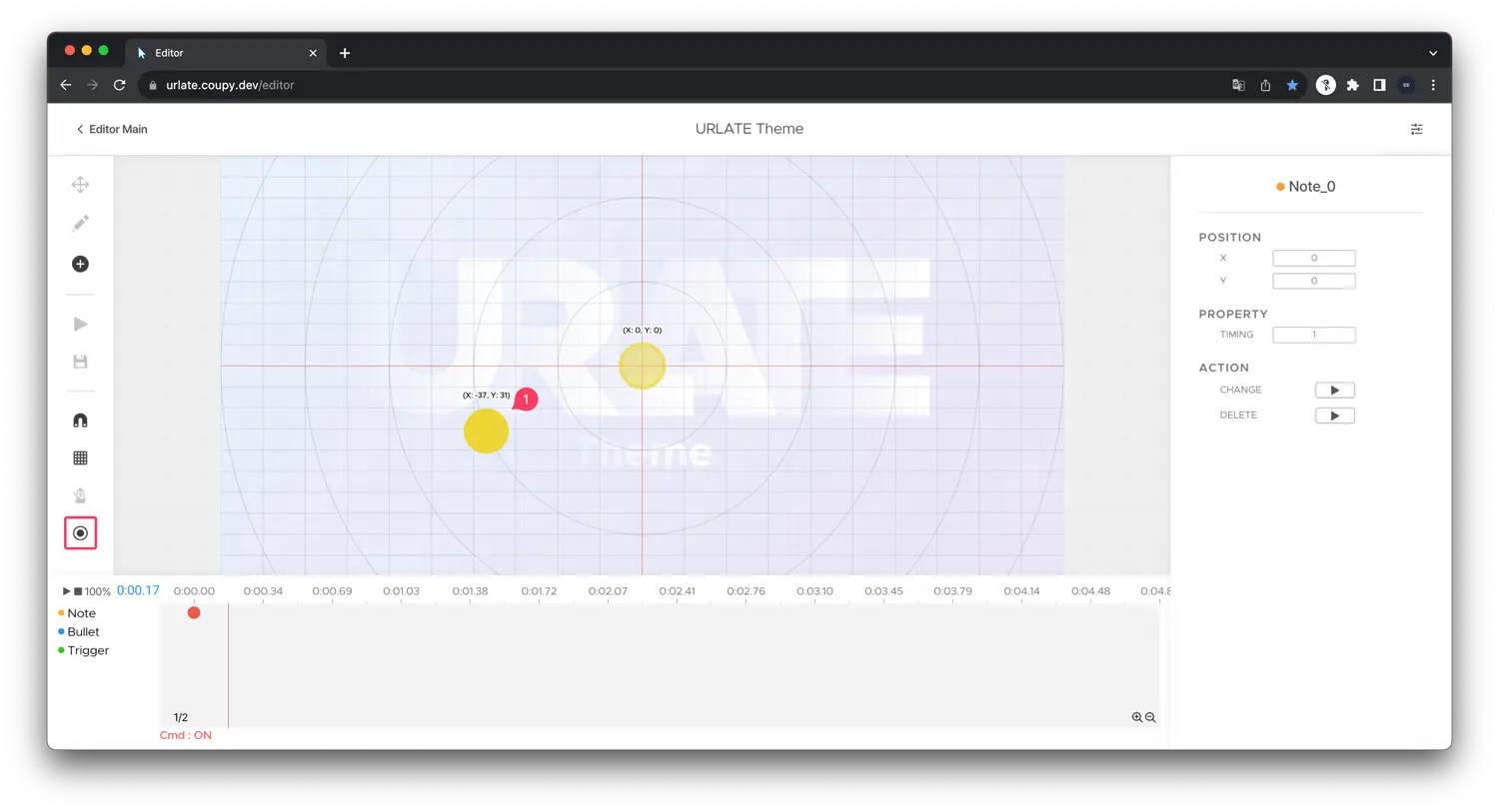

Circle Grid

Displays a circular grid when notes are selected, useful for jump patterns.

1. As you can see, the note is snapped to the circle grid.

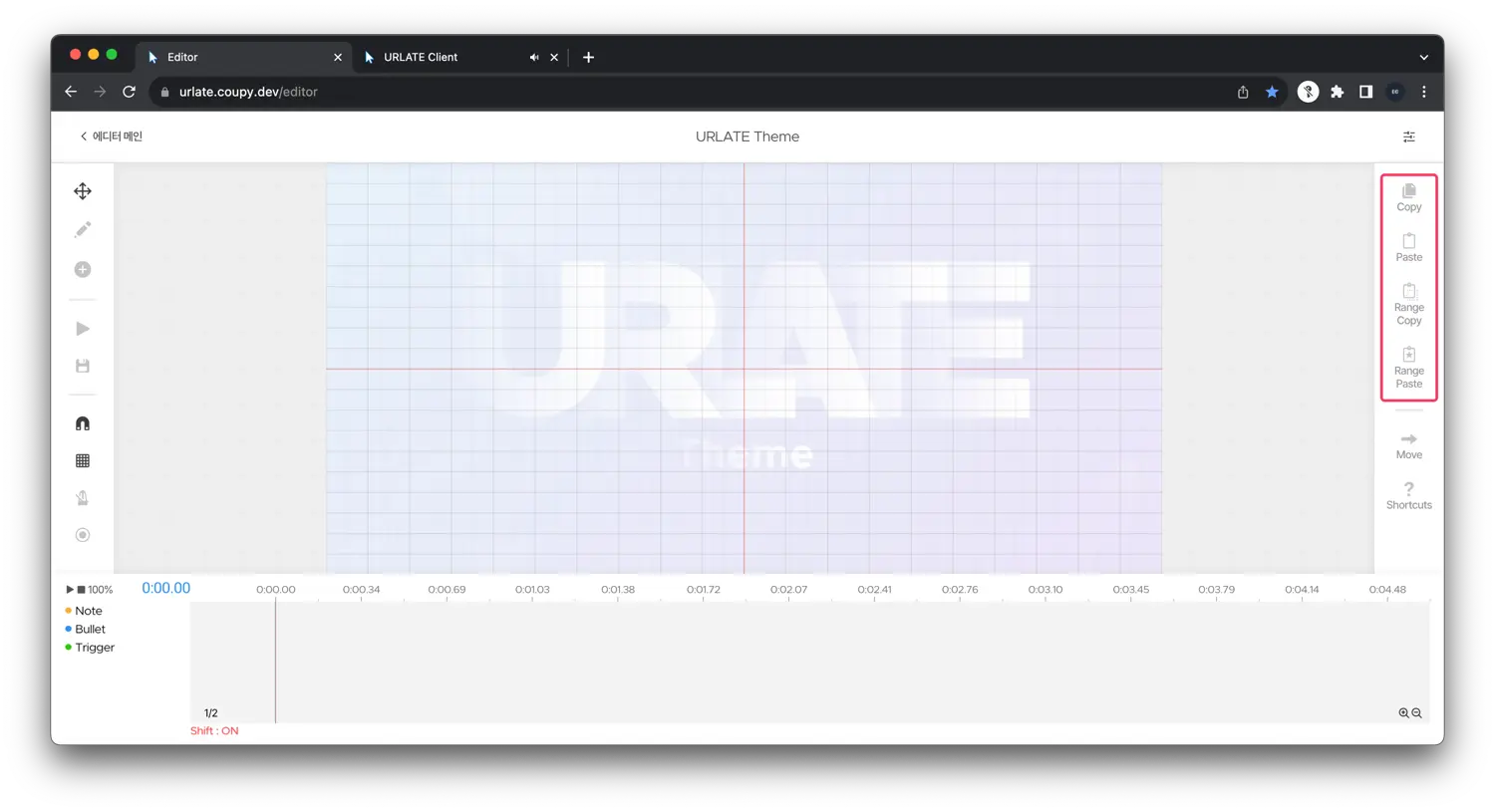

Element Tools

Copy/paste one or multiple objects using these buttons.

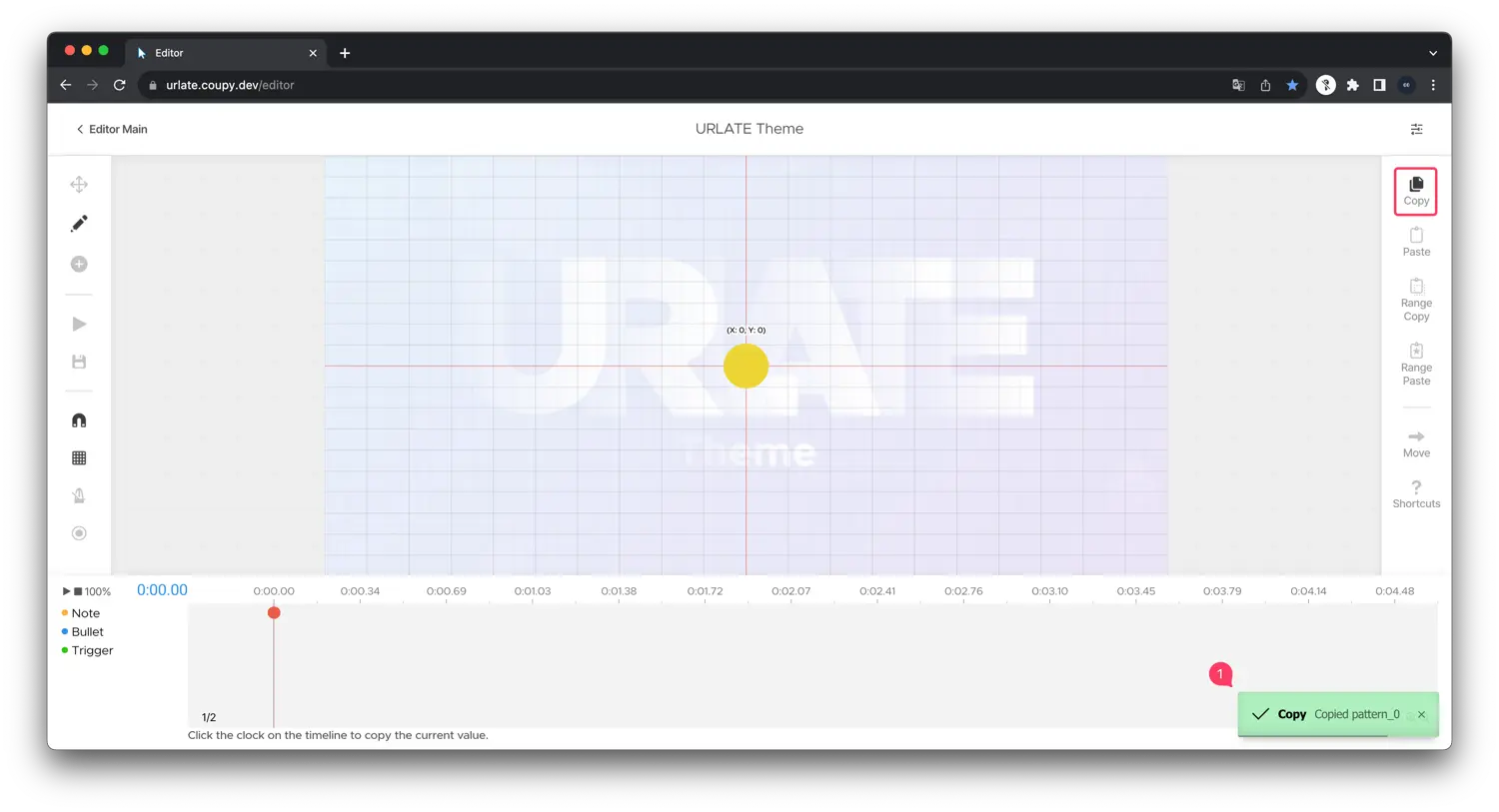

Copy

Click or press Ctrl(⌘) + C to copy.

1. The alert will be shown when you copy the objects.

Paste

Click or press Ctrl(⌘) + V to paste.

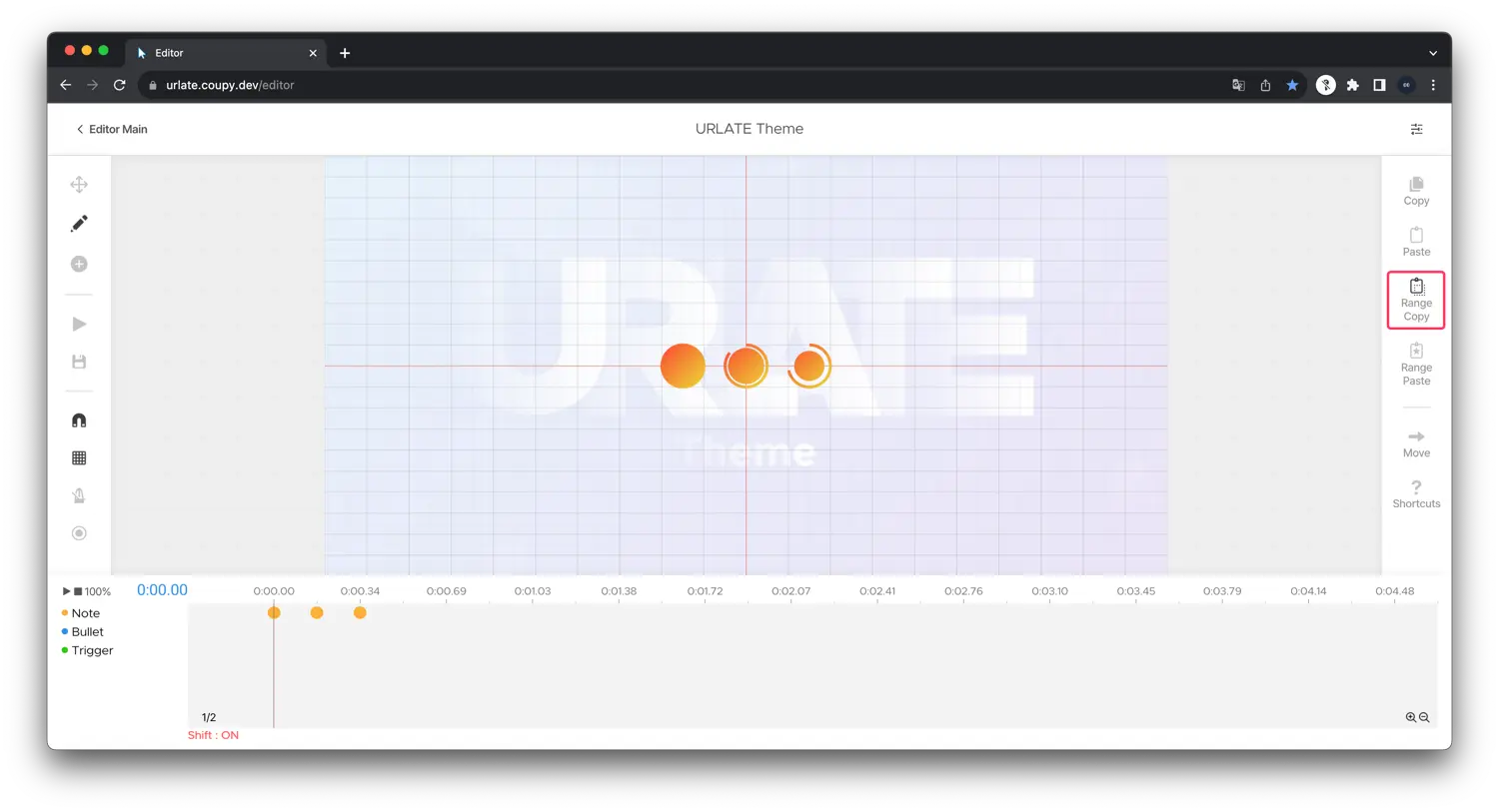

Range Copy

Copy objects within a selected range.

You will see the element selection dialog.

1. Select the element type you want to copy.
2. Press OK to copy the objects.

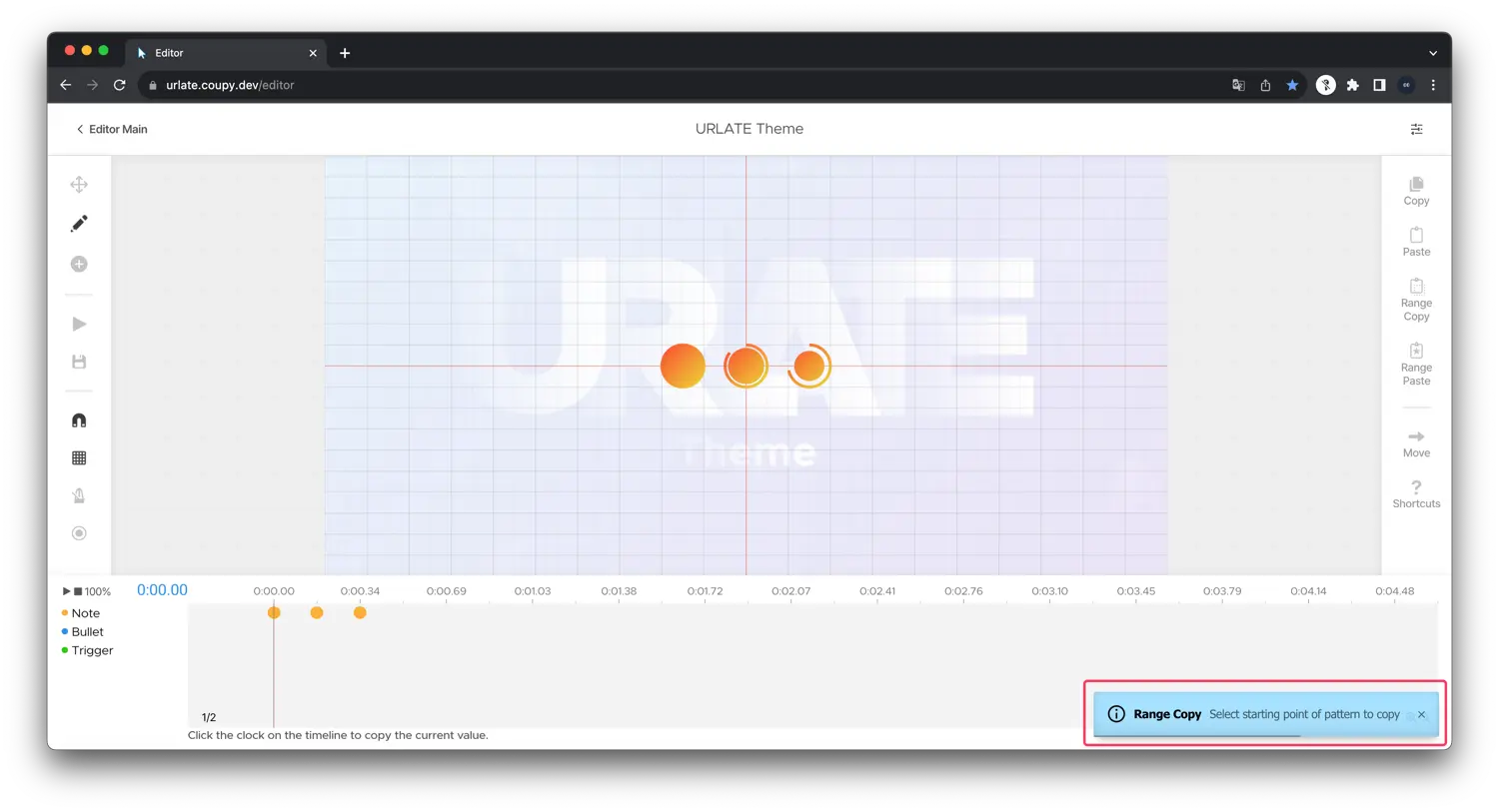

You can see the alert telling you to select the range.

Select the start element from the timeline or preview.

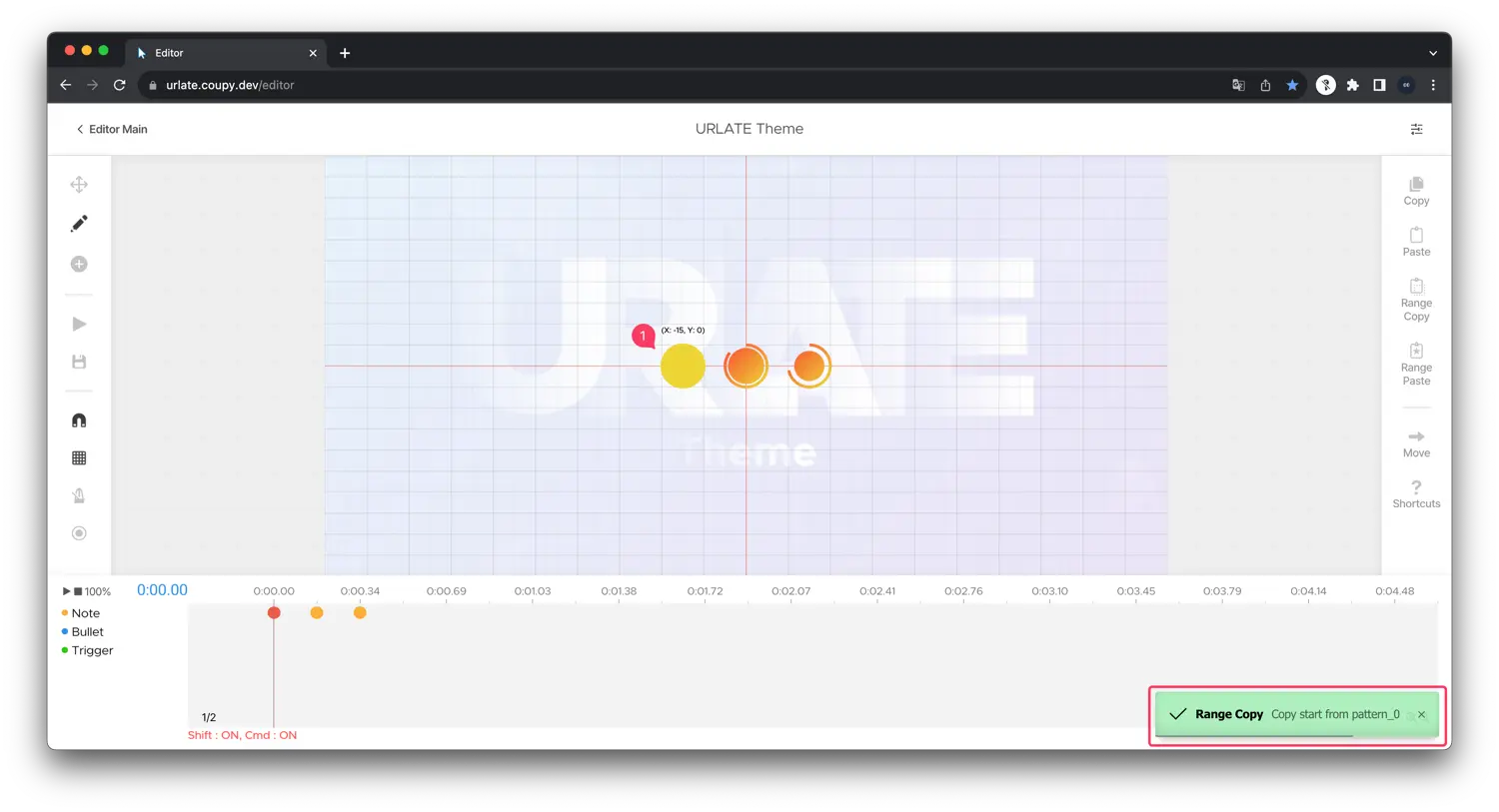

Alert will be shown when you select the start element.
Now select the end element.

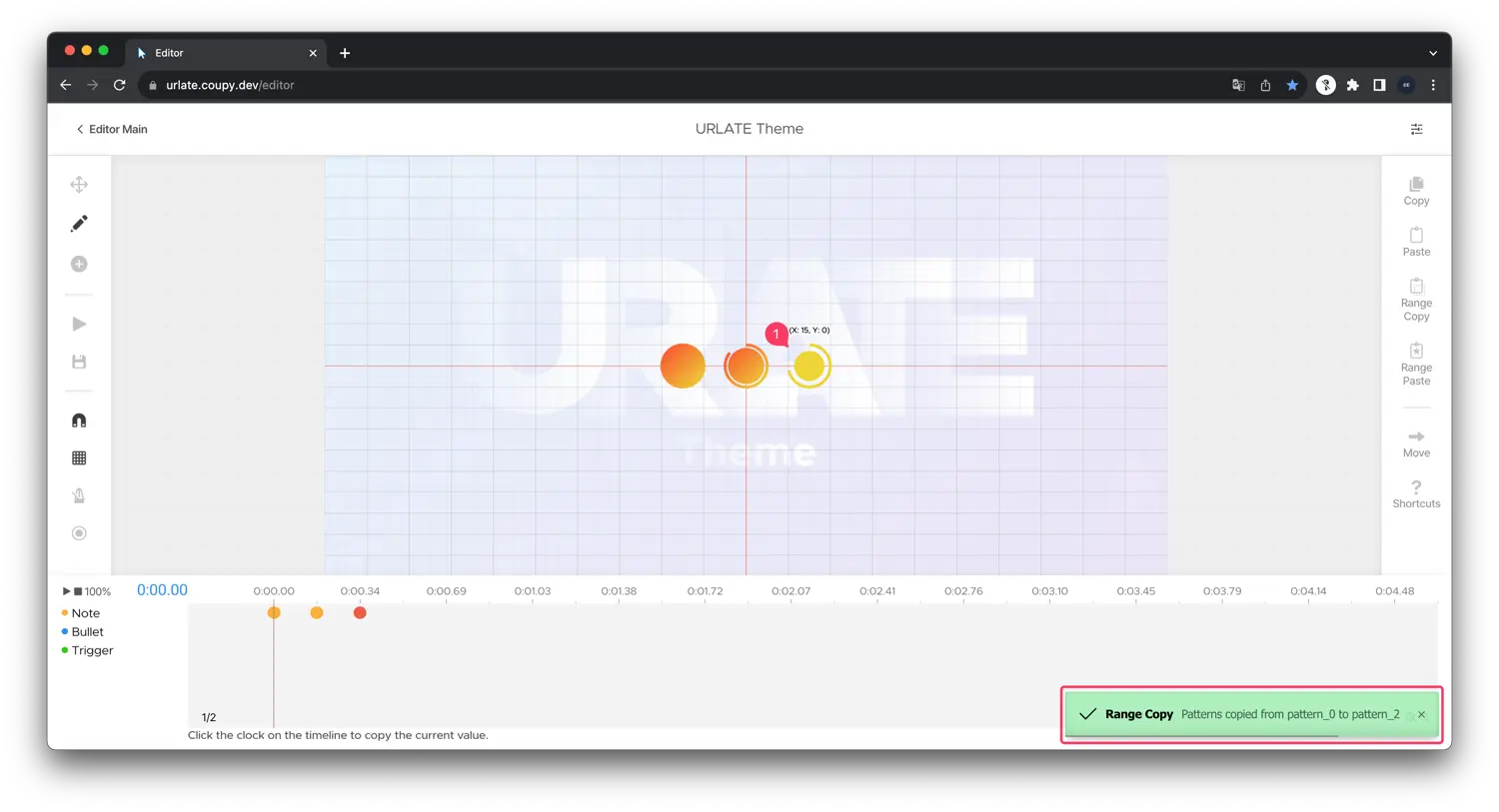

Alert will tell you the range you selected.

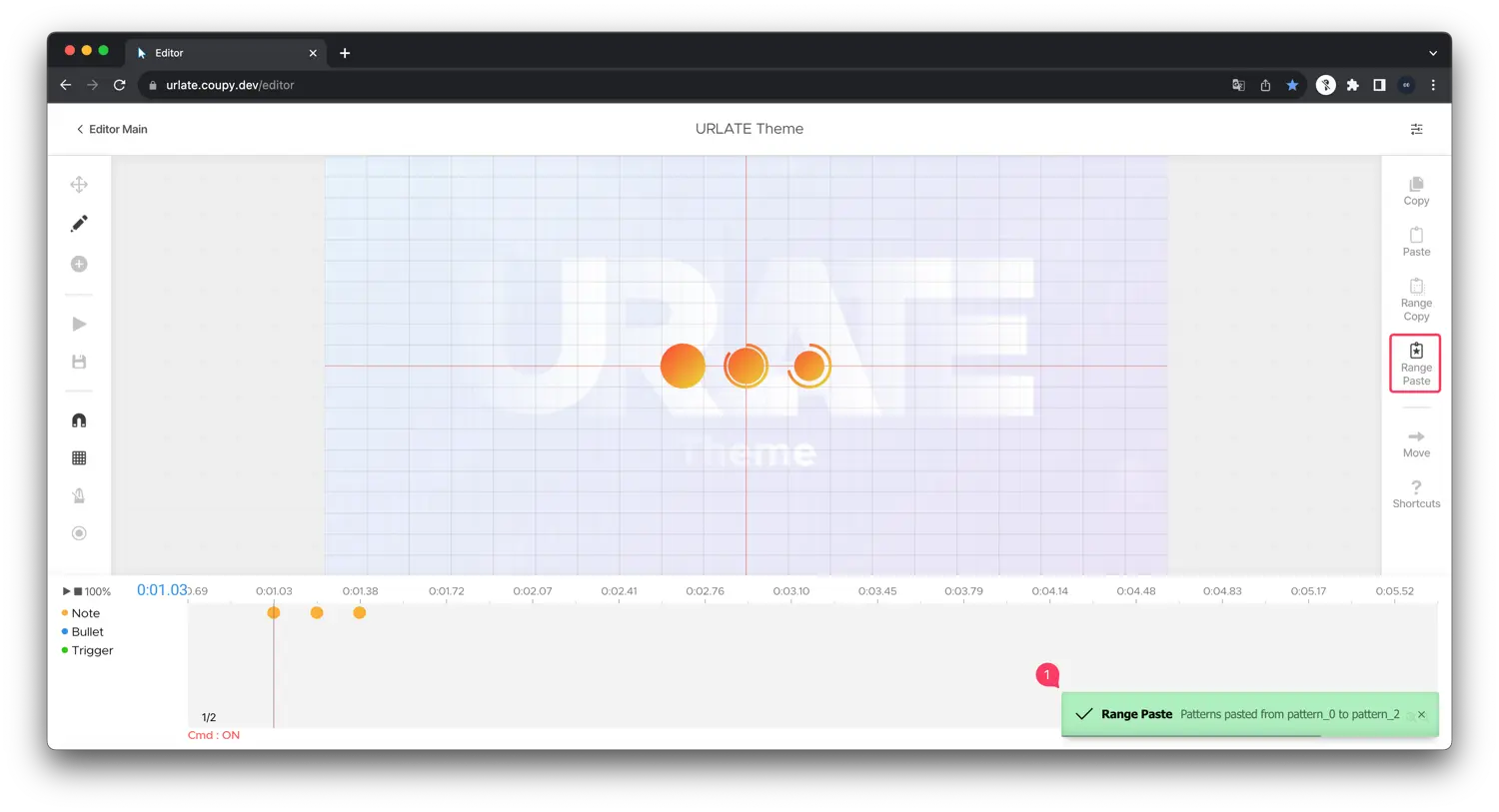

Range Paste

Paste objects copied via range.

1. Alert will be shown when you paste the objects.

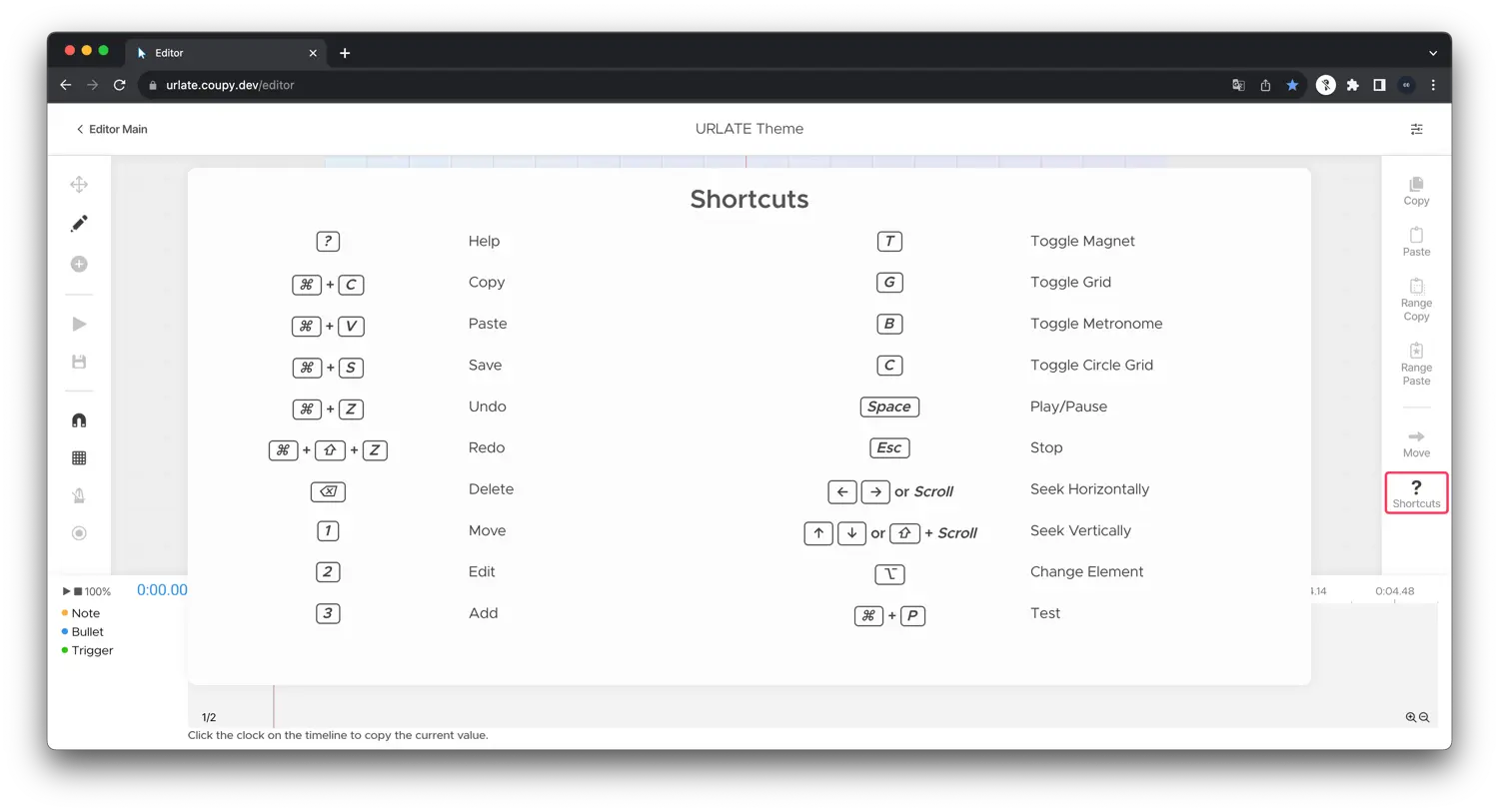

Shortcuts

Press /(?) or hover over the Shortcuts tool to view all shortcuts.
